Budget Z-wave Curtain tracks with Vera / Dooya / Fibaro – Part 5

Part one here, Part two here, Part three here, Part four here.

In Part five I will  cover the Vera setup and calibration of the Fibaro Blind Control module and remote control options.

Vera Setup

Once I had connected the Fibaro Blind Control insert module into the mains electric adding the device to the Z-wave network with Vera was very easy. I simply put my VeraLite in to battery mode and carried it next to where the Fibaro module had been installed. I then pressed the + button on the VeraLite and then triple clicked the B button on the Fibaro module, the two detected each other and the Fibaro module was added to Vera as a new device, as simple as that!

B Button on the module

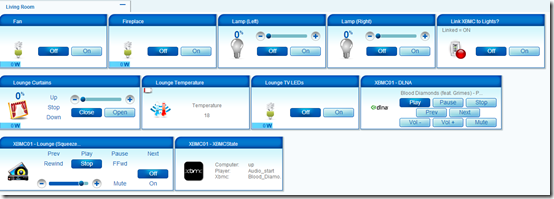

I renamed the device and assigned it to my living room



If you click the Spanner icon on the device it the opens up like this

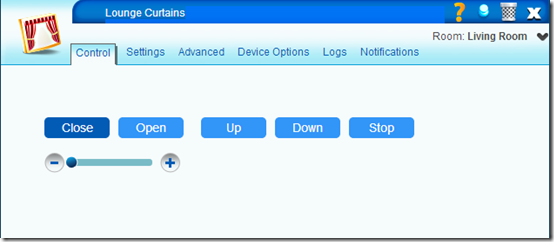

Control Tab

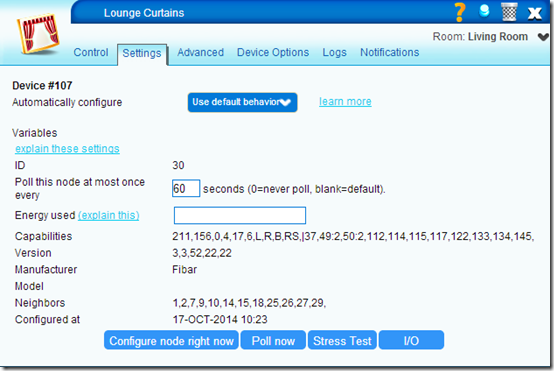

Settings Tab

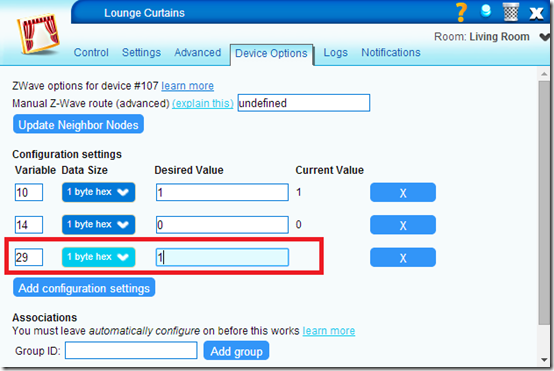

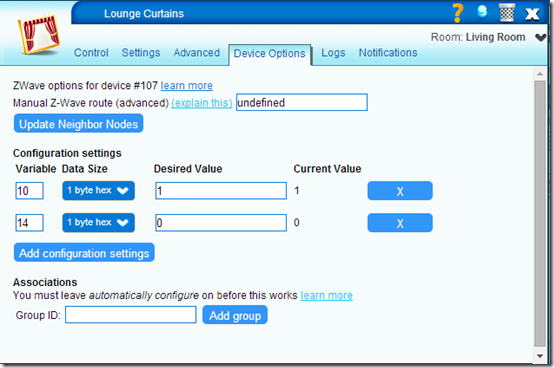

Device Options Tab

In here I added two parameters.

Parameter 10 = 1
Parameter 14 = 0


Parameter Number 10: Roller Shutter Operating Mode

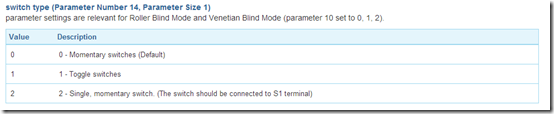

Parameter Number 14: Switch Type


The user manual for the Fibaro Blind Control module can be seen here.

Calibrating

“It may be necessary to calibrate the module, when it's not working properly. The Calibration is a process during which a Roller Shutter learns the position of the limit switches and a motor characteristic. The procedure consists of an automatic, full movement between the limit switches (up, down, and up again). There are different procedures of calibrating a Fibaro Roller Shutter.”

According to the user manual there are various ways to calibrate the blind control module, through Z-wave network, through switch keys, through the B button on the module.

I used this method:

Calibration through the Z-Wave network
  1. Make sure the module is connected to the power supply.
  2. Include the module into the Z-Wave network according to the inclusion procedure.
  3. Set the parameter 29 value to 1.
  4. Roller Shutter performs the calibration process, completing full cycle - up, down and up again.
  5. The parameter 29 value will be automatically set to 0.
  6. Using an interface test whether the positioning works correctly.

Until I had done the calibration routine the percentage slider in Vera was not working correctly. After calibration I was able to select say 50% and the curtain rail would move correctly to that position.

You may see a user configuration error in Vera whilst saving after entering the parameter 29, but don’t worry about that, as long as the curtain motor / rail moves and does the calibration routine. See here for more details.

Here you can see when the curtain motor is in operation its using 56 Watts.

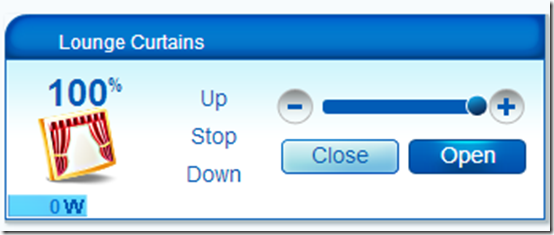

100% = Open

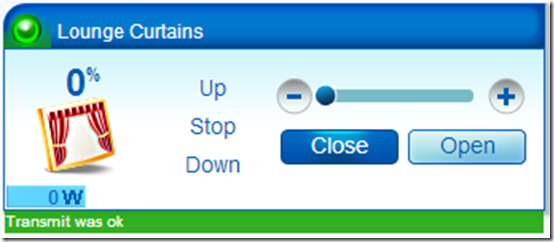

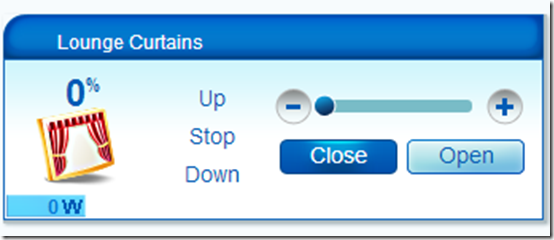

0% = Closed

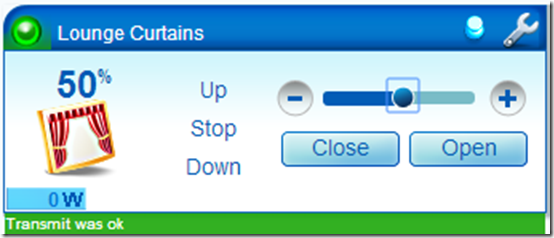

50%


Controlling the curtains from other devices

Logitech Harmony Remote Control

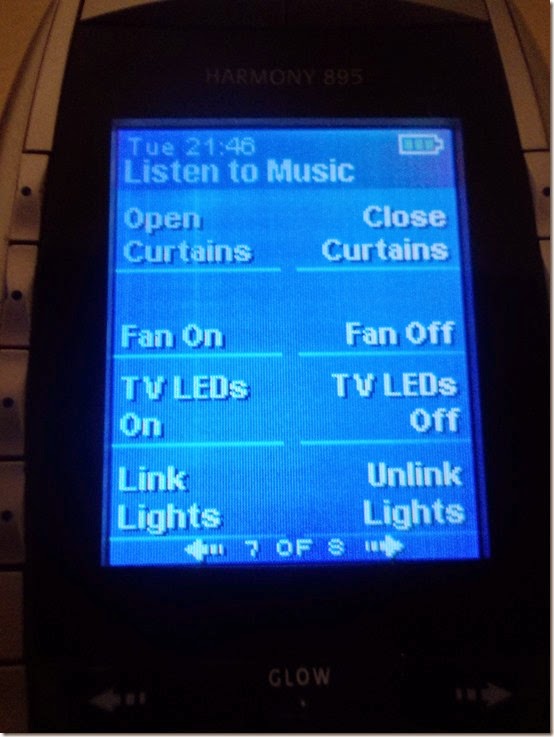

Using this method I previously described here, I have also programmed my Logitech Harmony universal remote control with two new buttons, Open Curtains and Close Curtains.
This functionality is integrated in to Kodi (XBMC) OpenElec, so when I am using my HTPC, I can now also use the remote control that is in my hand to control the curtains, now that is cool!

DSCN1785

Android Tablet / Phone – Authomation HD app for Vera

Authomation HD is pretty much the best app for controlling your Vera Home Automation gateway and the Z-wave devices around your home.

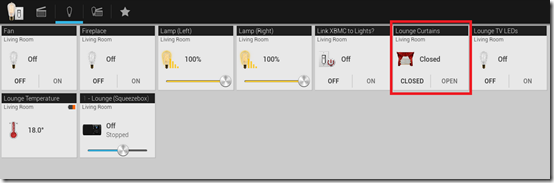

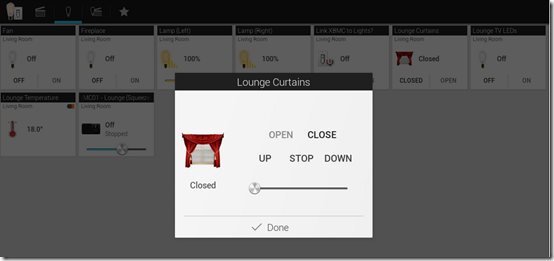

Below are a couple of screen shots from our Samsung Galaxy Tablet showing the new curtain device.



If your an Apple fanboy or girl, I’d recommend the VeraMate app for iOS devices.




















































Aeotec Minimote Z-wave remote control

I have several Minimote’s around the house, and I programmed button 4 on the one in the living room to run a curtain open / close toggle scene in Vera. By using a toggle I could use only one button on the Minimote to either open or close the curtains.



Integration with Kodi Media Center (Formally XBMC)

Using the XBMCState  add-on which I previously wrote about here, I’ve created scenes in Vera so that if it is dark outside? And if the curtains are still open? When I start to play a movie (any video) in Kodi the curtains are automatically closed and my room lamps automatically dim down to 25%.


That’s it for part five. In part six if I get around to it, I will do a video showing the curtains in operation and also showing all of these different remote control options in operation as well.

Please leave your comments and feedback and don’t forget if you place an order with Friend Group for the motors / curtains rails, to mention to them you were referred by ‘'The Media Center Blog” big thanks!

Also you can contact me directly for bespoke quotations for discounted Z-Wave Euro devices.
